12.1/13.3/15/15.6/17/19/21.5inch
Iintel® Core 7th/10th,i3/i5/i7
Windows10/11,Android,Linux
Wifi/4G/Bluetooth
Support HMI

Model

YPC-QD

Product Name

Industrial Panel PC

Display Screen

17inch

Machine Size

395mm*355.5mm*61.4mm

Material

Cast Aluminum Panel, Aluminum Profile Back Over

Touch Screen

10-Point Capacitive Touch

Resolution

1280*1024

Brightness

250cd/m²

Cooling Method

Fanless

Installation

Support Wall-Mounted/Embedded/Desktop

Storage Environment

-20℃~75℃, 5%~95% non condensing

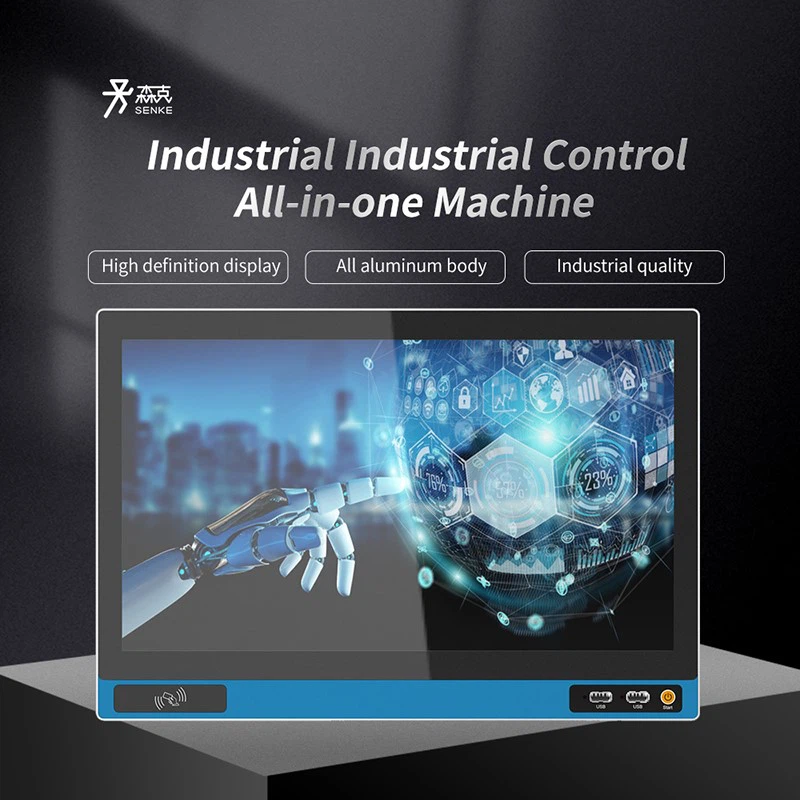

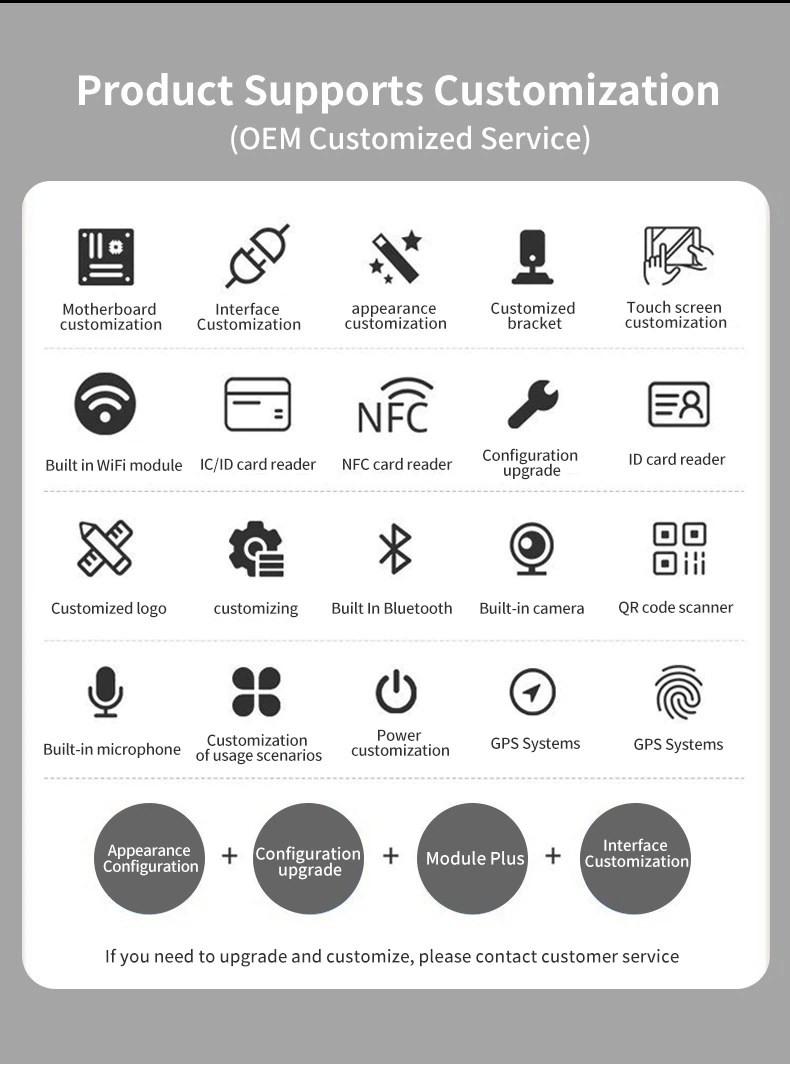

The YPC-QD is a 10 panel PC built for industrial applications where durability and reliability are essential. Its wall-mounted design features a robust aluminum alloy front panel paired with a cold-rolled steel housing, delivering strong resistance to corrosion and mechanical impact. This industrial panel PC touch model is equipped with a high-performance laminated capacitive touchscreen, offering excellent responsiveness and long-term durability in continuous-use environments. One of its standout features is the customizable front interface, which can integrate peripherals like IC card readers and cameras to suit various operational needs. Thanks to its efficient finned cooling system and fanless construction, the device remains stable even in high-temperature, high-humidity, or dusty conditions. With Panel PC IP66 protection, it ensures full resistance to water and dust ingress. Additionally, support for Panel PC PoE (Power over Ethernet) simplifies installation and power management, making the YPC-QD a smart, compact choice for industrial automation, control panels, and embedded systems.

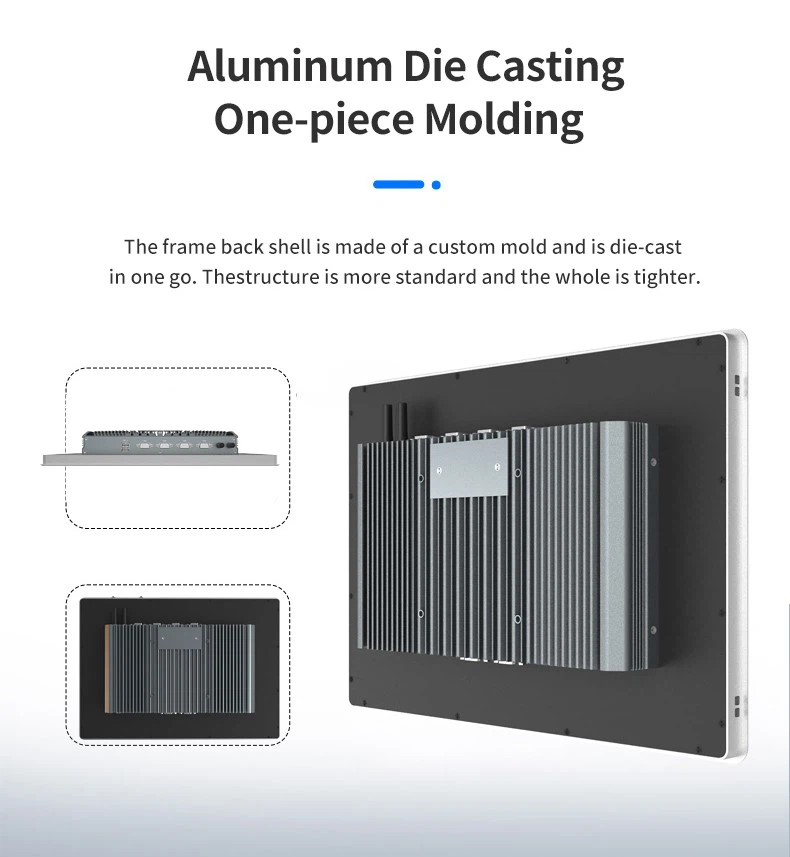

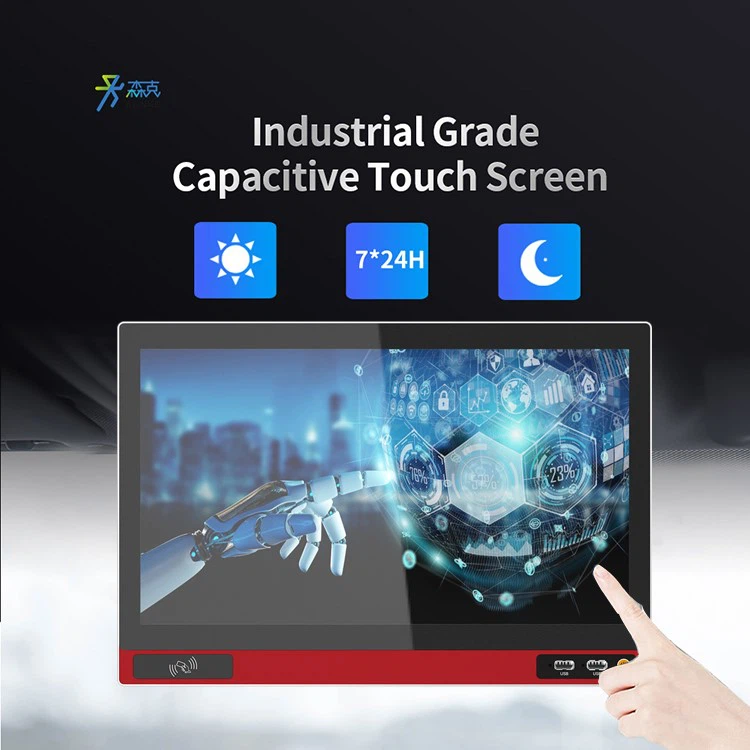

This industrial touch computer is built with a robust die-cast aluminum alloy enclosure and features a fanless touch screen architecture that ensures quiet performance and efficient thermal dissipation. Its high-accuracy capacitive touchscreen, paired with an IP65-certified front panel, guarantees stable functionality even in challenging conditions with dust, moisture, or constant vibrations-making it a reliable IP65 touch screen computer for heavy-duty industrial use.

This industrial panel PC runs on Windows OS and is powered by high-performance Intel® Core™ i5/i7 processors, delivering fast computing, multitasking, and system stability. Ideal for automation, data processing, and industrial control, it ensures seamless operation in demanding environments with enhanced compatibility and long-term support.
